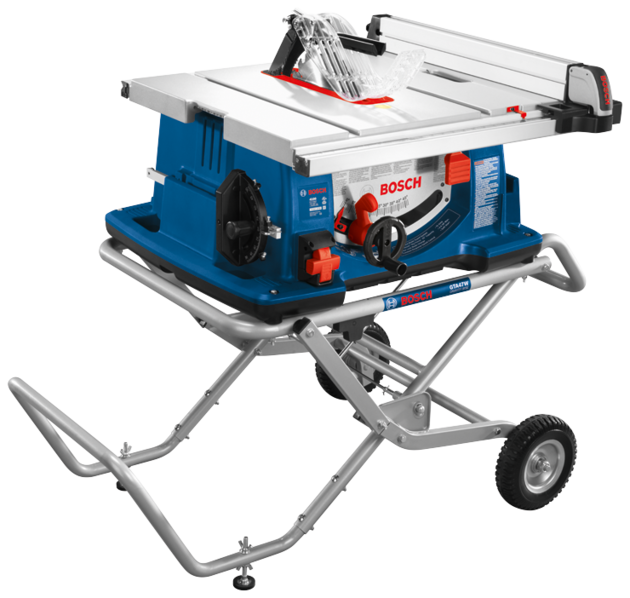

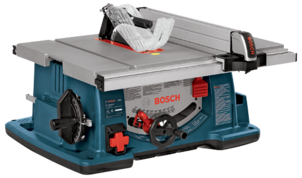

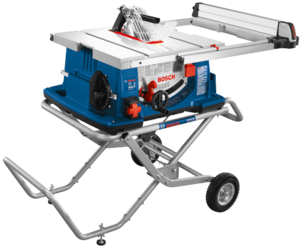

Bosch 4100-10 10 In. Worksite Table Saw with Gravity-Rise Wheeled Stand
Bosch 4100-10 10 In. Worksite Table Saw with Gravity-Rise Wheeled Stand

Bosch 4100-10 10 In. Worksite Table Saw with Gravity-Rise Wheeled Stand

0 Review(s) Write a Review
The Bosch 4100-10 10 In. Worksite Table Saw with Gravity-Rise Wheeled Stand delivers both professional rip capacity and outstanding portability for a tool that can get the job done, wherever it is. The powerful 15 Amp saw delivers 4.0 max HP for outstanding productivity.
Part Number: Bosch-4100-10
Buy from amazon
Bosch 4100-10 10 In. Worksite Table Saw with Gravity-Rise Wheeled Stand

The Bosch 4100-10 10 In. Worksite Table Saw with Gravity-Rise Wheeled Stand delivers both professional rip capacity and outstanding portability for a tool that can get the job done, wherever it is. The powerful 15 Amp saw delivers 4.0 max HP for outstanding productivity. It also incorporates soft-start circuitry for smooth but quick ramp-up to the operating speed to manage the intensity of motor start-up and minimize the possibility of tripping a circuit breaker.. It includes Constant Response circuitry to help maintain speed under load, and overload protection. The SquareLock rip fence is engineered for maximum trueness and great ease-of-use, with the fence able to easily glide along the rail for one-handed operation. The lighter GTA47W Gravity-Rise Wheeled Stand has 8 In. treaded rubber-composite tires and a single-action design for easy set-up and transport. It is jobsite-ready with heavy-duty construction. The Smart Guard System is the first modular table saw blade guard, featuring a three-position adjustable riving knife, anti-kickback pawls and non-obstructed-view barrier guard assembly. The table saw provides a 29 In. x 21-1/2 In. square tabletop with a 25 In. rip capacity for ripping 4 Ft. wide sheets goods in half.

Includes

  • (1) GTA47W Gravity-Rise Wheeled Table Saw Stand
  • (1) Smart Guard System - Barrier-Guard Device and Anti-Kickback Pawls
  • (1) 10 In. Carbide-Tipped Blade
  • (1) SquareLock Rip Fence
  • (1) Miter Gauge
  • (1) Push Stick
  • (1) Throat Plate Insert
  • (1) Multi-Function Blade Wrench
  • (1) Adjustment Wrench

Specifications

Attributes Amperage 15.0 Arbor 5/8" Bevel Angle Range -2° to 47° Blade Diameter 10.0 Dimensions Table saw & stand combination in working position = 30.25" Depth (front to back) x 47" Width (when extension is at in-most position) x 35.5" Height. Table-top dimensions = 21-1/2" Depth (front to back) x 29" Width (when extension is at in-most position) Dust Blower No Height 13.25" Length 29.0" Max. Bevel Capacity (°) 47.0 Max. Depth of Cut at 45 Deg. 2-1/2" Max. Depth of Cut at 90 Deg. 3-1/8" No Load RPM 3,650 Voltage 120V Weight 58.0lb Weight of Bare Saw - Lb. 58.0 Weight of Saw and Standard Equipment (Without Stand) - Lb. 63.0 Weight of Saw, Standard Equipment and Stand - Lb. 92.0 Width 32.0" Working Length Table Top dimensions 29" x 21-1/2" Works With Vacuum Hoses
Common 2-1/2" Vacuum Hoses
Vacuum Hose Adapter for 35 mm Vacuum Cleaner Hoses
VAC004
Dust Bag
TS1004
Zero-Clearance Insert
TS1005
Dado Insert
TS1007
Molding Insert
TS1009
Outfeed Support
TS1016
Left-Side Support
TS1008 Includes (1) GTA47W Gravity-Rise Wheeled Table Saw Stand, (1) Smart Guard System - Barrier-Guard Device and Anti-Kickback Pawls, (1) 10 In. Carbide-Tipped Blade, (1) SquareLock Rip Fence, (1) Miter Gauge, (1) Push Stick, (1) Throat Plate Insert, (1) Multi-Function Blade Wrench, (1) Adjustment Wrench

Benefits

  • Powerful 10 In. Worksite table saw – features 15 Amp saw delivers 4.0 Max HP and 3,650 RPM, for the power required for ripping rip-cutting and cross-cutting in of fine- and rough-carpentry materials
  • Large cast aluminum top – provides increased work space and material support with a 25 In. ripping capacity to cover all typical jobsite rip-cutting widths
  • Soft-start circuitry – manages the intensity of motor start-up and minimizes the possibility of tripping a circuit breaker
  • Constant response circuitry – helps maintain speed under load
  • Portability – works seamlessly with the included lighter GTA47W Gravity-Rise Wheeled Stand for easy jobsite mobility, with single-action setup and take down
  • SquareLock rip fence – engineered for enhanced clamping and trueness
  • Smart Guard System – riving knife and anti-kickback pawls provide protection, while the guard assembly provides a barrier to help prevent blade contact while allowing an unobstructed view of the cut
  • Onboard storage – allows for access to all included components
  • Arbor lock – permits easy blade changes, with arbor lock and blade wrench located onboard
