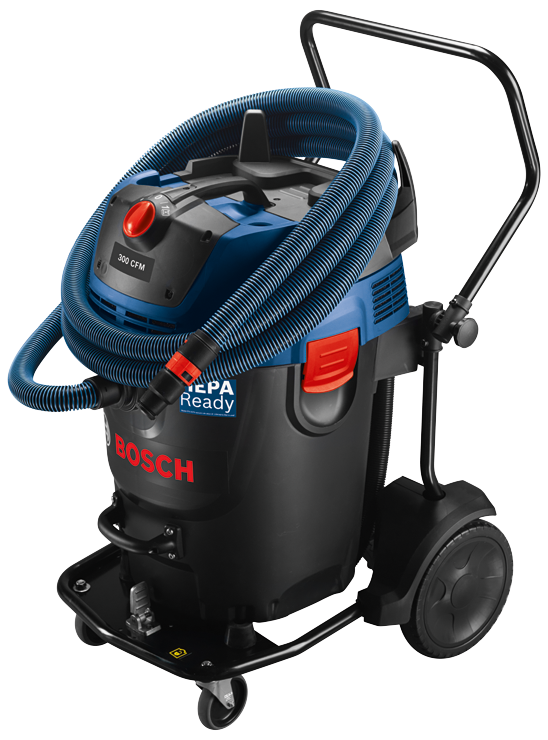

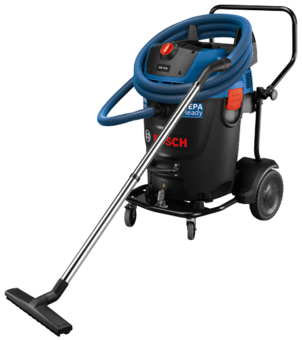

The Bosch 300-CFM Dust Extractor delivers the high-performance cubic-feet-of-air-per-minute (CFM) rate for maximum dust extraction for heavy-duty concrete construction applications such as concrete cutting and surface grinding. The dust extractor’s powerful 17.5 Amp motor delivers a maximum 300 CFM, and it is designed to help users move toward compliance with the OSHA Silica Table 1 dust compliance regulation. The automatic on-board filter-cleaning system activates every 15 seconds to help maintain maximum suction power. The included HEPA filter captures 99.97% of particles at 0.3 microns and larger. The included three-layer heavy-duty filter bag helps to protect the filter and provides the optimal containment of dry dust. It also provides wet/dry operation, with a water-level sensor and drain hose. The extractor features a wheeled metal frame with dumping mechanism, metal castors and a height-adjustable push handle. This unit includes a 16 Ft. 35mm anti-static hose and 27 Ft. power cord with standard 20 Amp plug. When used with the optional Y-Connect (sold separately), the dust extractor can be hooked up to two tools (such as small angle grinders when used in grinding or cutting concrete).
Includes
- (1) GAS20-17A 17-Gallon 300-CFM Dust Extractor
- (1) VF430H HEPA Filter
- (1) VB170 Heavy-Duty Three-Layer Filter Bag
- (1) VH1635A 16 Ft. Anti-Static Vacuum Hose
- (1) VX100 Elbow
- (1) VX460 Suction Tubes / Floor Set
Specifications
Attributes
- Air Flow 300 CFM
- Amperage 17.5
- Capacity (gal) 17.0
- Height 36.0"
- Hose Diameter (in) 1.37
- Length 25.0"
- Static Water Lift 96.0"
- Vacuum Suction Pressure 242 millibars or 97.3 inches of water lift (max.)
- Voltage 120V
- Weight 63.0lb
- Wet / Dry Yes
- Width 22.0"
- Works With Three-Layer Heavy-Duty Filter Bag
VB170
Filters
VF430H HEPA, VF410 Polyester
Vacuum Hoses
VAC005, VH1635A, VH1635, VH1622A, VH1035, VH1022
Suction Tube & Floor Nozzle Set
VX460
Y-Connector for Hoses
VX450
Wet Filter Bag and Plastic Bag
VB170S and VB170P
Bend / Elbow
VX100 Includes (1) GAS20-17A 17-Gallon 300-CFM Dust Extractor, (1) VF430H HEPA Filter, (1) VB170 Heavy-Duty Three-Layer Filter Bag, (1) VH1635A 16 Ft. Anti-Static Vacuum Hose, (1) VX100 Elbow, (1) VX460 Suction Tubes / Floor Set
Benefits
- Part of Bosch PRO+GUARD™ – helps users move toward OSHA Silica dust compliance
- Impressive 300-CFM air-flow capability – features high-performance CFM for maximum dust extraction in heavy-duty concrete construction applications
- Powerful 17.5 Amp motor – delivers strong extraction performance for extreme commercial applications
- Automatic filter cleaning – cleans filter every 15 seconds for consistent suction power
- Three-layer heavy-duty filter bag – helps protect the filter from abrasive materials and provides the optimal containment of dry dust and debris
- Wet/dry operation with water-level sensor and drain hose – Sensors automatically prevent overfilling and hose provides easy drainage
- HEPA filter – captures 99.97% of particles at 0.3 microns or larger
- Wheeled metal frame with dumping mechanism – offers easy transporting, stability and emptying convenience
- Metal castors – built to withstand the demands of the jobsite
- Fold down push handle – provides jobsite mobility and convenient storage
- 16 Ft., 35mm anti-static hose – extends effective work area and helps mitigate static electricity
- 27 Ft. power cord with standard 20 Amp plug – provides wide jobsite coverage and convenience
- Optional Y-Connect (sold separately) – allows used of two tools at the same time, such as small angle grinders when used in grinding or cutting concrete
