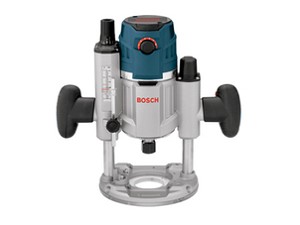

Bosch MRP23EVS 2.3 HP Electronic Plunge-Base Router
The Bosch MRP23EVS 2.3 HP Electronic Plunge-Base Router delivers greater control because of its trigger-controlled power system, which has a power switch in the plunge-base handle. The Afterlock microfine bit-depth adjustment fine-tunes at any plunge setting, and an adjustable turret stop makes it easy to set any cumulative depth. With a smooth plunge action and a spring-lock plunge lever, this router gets accurate results. It has a 15 Amp motor and adjustable speed settings. The variable-speed dial allows the operator to match the speed to the material. Constant Response circuitry delivers a constant speed throughout the cut. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices.
Includes
- Plunge base (MRP01)
- 1/4" Self-Releasing Collet Chuck - 2 610 906 283
- 1/2" Self-Releasing Collet Chuck - 2 610 906 284
- 16mm Shaft Wrench -- 2 610 991 388
- 24mm Collet Nut Wrench - 2 610 992 417
Specifications
Attributes
- Amperage 15.0
- Base Diameter 6-11/16"
- Base Opening 3-5/16”
- Case Type No Case Included
- Collet Capacity 1/2" and 1/4"
- Dust Collection No
- Height 12.0"
- Length 6.75"
- Max. Tool HP 2.3
- No Load RPM 10,000-25,000
- Plunge Depth 3" (75mm)
- Rating 120V AC
- Voltage 120V
- Weight 12.6lb
- Width 12.6"
- Works With Router Guide
RA1054
Template Guide System
RA1128 Template Guide Set, RA1129 Template Guide Adapter Set
Centering Device for Subbases and Attached Template Guides
RA1051
Dust Collection Attachments
RA1175 Edge-forming Dust Hood, RA1177AT Three-Hood Dust Hood Set
Fixed-Base / Router Table Base
MRF01 Includes Plunge base (MRP01), 1/4" Self-Releasing Collet Chuck - 2 610 906 283, 1/2" Self-Releasing Collet Chuck - 2 610 906 284, 16mm Shaft Wrench -- 2 610 991 388, 24mm Collet Nut Wrench - 2 610 992 417
Benefits
- Trigger-control system – trigger power switch located in handle for enhanced control
- Powerful 15 Amp motor – produces 10,000 to 25,000 RPM and 2.3 hp
- Precision-centering design – makes it easy to keep bit on outline
- Afterlock plunge-base depth adjustment – easy, precise adjustments at any plunge setting
- Constant Response circuitry – maintains constant speed under load
- Soft-start function – reduces start-up torque
- Always-on LED lighting – for enhanced visibility in bit area
- Two-stage quick clamp system – for fast tool-free conversion
- Variable-speed dial – for matching speed to workpiece and task
- Contoured soft grip handles – for enhanced control and comfort
- Cord swivel – for added mobility
- Contoured soft grip handles - provides enhanced control and comfort
- Compatible with optional RA1129 Template Guide Adapter Set – for easy change of Bosch quick-release template guides and common threaded template guides
