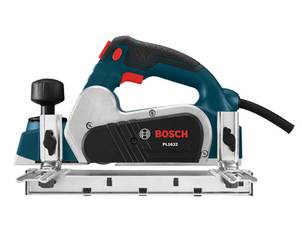

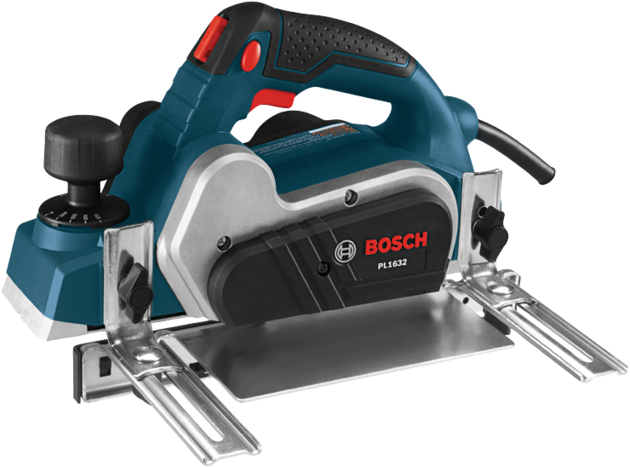

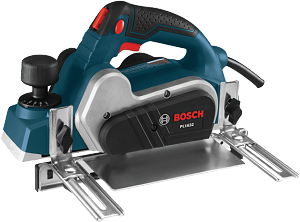

The Bosch PL1632 3-1/4 In. Planer delivers for pros who need to plane doors or other surfaces quickly and evenly. It delivers performance, convenience and security – with an outstanding planer-guidance system. It has a 6.5 Amp motor that produces 16,500 RPM for fast stock removal and smooth finishes. The tool's ambidextrous lock-off release button helps prevent avoid accidental starts, and it has a lock-on button for extended operation, a combination that is unique to Bosch planers. The aluminum front and rear shoes are precision-machined together for accuracy, and the tool has a machined groove for chamfering. Its counterbalanced blade design puts the blade at an ideal cutting angle and eliminates uneven planing caused by misaligned blades. It comes equipped with a reversible Bosch Woodrazor micrograin carbide blade. The tool also provides a spring-loaded stand that elevates the planer to protect the blade. The dual-mount guide fence can be mounted on either side of tool, with a plastic overshoe that offers protection for the workpiece surface. The dust port accommodates a large shavings bag. This planer is built with a poly micro-V drive belt for enhanced belt durability and a ball-joint cord swivel for enhanced ease of positioning the tool and cord.
Includes
- (1) Reversible Woodrazor Blade - PA1202
- (1) Dual-Mount Guide Fence
- (1) No-Mar Plastic Overshoe for Fence
- (1) Shavings Bag
- (1) Blade Wrench
Specifications
Attributes Amperage 6.5 Case Type No Case Included Height 6.5" Length 11.4" No Load RPM 16,500 Planing Depth 0" to 1/16" (1.5 mm) Planing Width 0" to 3-1/4" Rabbet Depth 5/16" Rabbet Width 3-1/4" Rating 120V AC Voltage 120V Weight 6.3lb Width 6.0" Works With Anti-Static Vacuum Hoses
VH1635A (by means of anti-static adapter included with that hose), VAC008, and most other 35 mm anti-static hoses
Other Vacuum Hoses
VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 35 mm hoses
Adapter for 1-1/4 in. and 1-1/2 in. Vacuum Hoses
VAC002 or VAC024
Adapter for 2-1/2 in. Vacuum Hoses
VAC020
3-Degree Fence Overshoe
PA1009 Includes (1) Reversible Woodrazor Blade - PA1202, (1) Dual-Mount Guide Fence, (1) No-Mar Plastic Overshoe for Fence, (1) Shavings Bag, (1) Blade Wrench
Benefits
- Durable 6.5 Amp motor producing 16,500 RPM – for fast stock removal and smooth finish
- Dual-mount guide fence – mounts to either side for consistent planing; includes protective shield and no-mar plastic overshoe
- Ambidextrous lock-off release button – helps prevent accidental starts; includes a lock-on button for extended operation
- Aluminum front and rear shoes – precision-machined together after assembly to ensure accuracy
- Ratcheting depth knob – for foolproof depth-increment setting from 0 to 1/16 In. within one revolution, eliminating the need to re-zero the depth
- Electronically counterbalanced single-blade design system – automatically positions blade at ideal cutting angle; reduces drag, enabling faster operation and smooth cutting
- Reversible Bosch Woodrazor micrograin carbide blade – lasts up to 30% longer than standard carbide blades
- Ball-joint cord swivel – for enhanced ease of positioning the tool and cord
- Spring-loaded stand elevates tool – protects blade and tool resting spot
- Separate inch and metric depth scales – provides easy setting of planing depth
- Machined groove – for chamfering
- Poly micro-V drive belt – provides enhanced belt durability
- Machined groove for chamfering
- Poly micro-V drive belt provides enhanced belt durability
